POWERCLAMP PLATE KIT

The new plate dedicated to the PowerClamp bracket has been designed to ensure an even more secure fastening for the terminal panels: resting on the concrete of the ballast, the plate provides the metal teeth of the bracket with a solid and reliable support, offering a practical, robust, and quick solution.

ITEM: 23920/PWC

MATERIAL: Steel

KIT GRAFFA EASYWEST EV

Specifically designed for the EasyWest system, the PowerClamp brackets are made of stainless steel 304 and ensure high safety from both mechanical and electrical perspectives. The special metal teeth provide a strong and durable fastening, and allow bypassing the anodization of the panel frames, acting as an electrical bridge and making grounding operations much simpler and faster. The brackets come in two different sizes: the EP version is to be used on the taller ballast (23010.EP), while the EV version is fixed to the shorter ballast (23010.EV).

ITEM: K23900PWC-EV.40

MATERIAL: Steel

GRAFFA EASYWEST EP KIT

Specifically designed for the EasyWest system, the PowerClamp brackets are made of stainless steel 304 and ensure high safety from both mechanical and electrical perspectives. The special metal teeth provide a strong and durable fastening, allowing for the overcoming of the anodization of the panel frames by acting as an electrical bridge, making grounding operations much simpler and faster. The brackets come in two different sizes: the EP version is to be used on the higher ballasts (23010.EP), while the EV version attaches to the lower ballasts (23010.EV).

ITEM: K23900PWC-EP.40

MATERIAL: Steel

POWERCLAMP BRACKET KIT

Made of 304 stainless steel, the new PowerClamp bracket has been designed to ensure an even more solid attachment of the PV panels: the metal teeth provide a strong and durable grip – even under intense weather conditions – further contributing to the safety and reliability of the system. The bracket also serves as an electrical bridge between the panels, making grounding operations – if necessary – much simpler and faster.

ITEM: K23900/PWC.50

MATERIAL: Steel

KIT NO-FLEX CONNECT

NO-FLEX Connect is a Sun Ballast accessory designed to be inserted on central reinforcement weights to support large panels and prevent central bending. Its “L” shape is designed to be compatible with all inclinations of the Sun Ballast Connect systems from 5° to 30° with panels installed horizontally.

ITEM: K23711

MATERIAL: Steel

THICKNESS: 30/10

WEIGHT: 120g

KIT NO-FLEX STANDARD

NO-FLEX Standard is a Sun Ballast accessory designed to be inserted on central reinforcement weights to support large panels and prevent central bending. Its “I” shape is designed to be compatible with all angles of the Standard Sun Ballast systems from 3° to 30° with panels installed horizontally.

ITEM: K23712

MATERIAL: Steel

THICKNESS: 30/10

WEIGHT: 120g

KIT STAFFA Z FOR PROFILES ON BALLAST

ITEM: K23709

DIMA ALIGNMENT WEIGHTS FOR CONNECT SYSTEM

DIMA ALIGNMENT WEIGHTS FOR CONNECT SYSTEM

ITEM: K23400

DIMA ALLINEA ZAVORRE FOR STANDARD SYSTEM

DIMA ALLINEA ZAVORRE FOR STANDARD SYSTEM

ITEM: 23400

UNIVERSAL CENTRAL BRACKET KIT

Accessory made of aluminum 6060 T6, a material that has good workability for the production of profiles with even complex sections. Standardized products for photovoltaic systems. Maximum tightening torque 12 -14N/m. The main characteristics are: high break load; high yield load; good elastic resistance.

ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): Art. K23900/U.50

ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): Art. K23900/U.55

BLACK ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): K23900/UN.50

BLACK ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): K23900/UN.55

UNIVERSAL TERMINAL BRACKET KIT

Accessory made of aluminum 6060 T6, a material that offers good workability for the production of profiles with even complex sections. Standardized products for photovoltaic systems. Maximum tightening torque 12 -14N/m. The main features are: high breaking load; high yield strength; good elastic resistance.

ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): Art. K23920/U.50

ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): Art. K23920/U.55

BLACK ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): K23920/UN.50

BLACK ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): K23920/UN.55

ADDITIONAL WEIGHT 15 KG (FOR CONNECT AND CABLOWIND SYSTEM)

The U-Block additional weights allow you to increase the resistance of photovoltaic systems in just a few minutes. Available in two versions of 15 and 30 Kg, the U-Block does not require any fixing holes and is placed directly on the ballast (or the Cablowind system), modulating the load according to the needs of the system.

ITEM: Art. 23015.CRP

QUANTITY PER PALLET: 36 Pieces

PALLET DIMENSIONS: 107 cm x 93 cm h = 48 cm

TOTAL PALLET WEIGHT: 553 Kg

NOTES: USED FOR BALLASTS FROM 5° AND ABOVE FOR HIGH WIND LOADS

ADDITIONAL WEIGHT 30 KG (FOR CONNECT AND CABLOWIND SYSTEM)

Additional weight (30.5x30x17) 30 Kg fitting onto central ballast

ITEM: Art. 23030.CRP

QUANTITY PER PALLET: 18 Pieces

PALLET DIMENSIONS: 90 cm x 98 cm h = 50 cm

TOTAL PALLET WEIGHT: 540 Kg

NOTES: USED FOR BALLASTS FROM 5° AND ABOVE FOR HIGH WIND LOADS

UNIVERSAL JOINING PLATE FOR EAST – WEST INSTALLATION

UNIVERSAL JOINING PLATE FOR EAST – WEST INSTALLATION

ITEM: Art. 23815

UNIVERSAL JOINT PLATE KIT

UNIVERSAL JOINT PLATE KIT

UNIVERSAL JOINT PLATE KIT: K23804

JOINT PLATE FOR SAIL SYSTEM

JOINT PLATE FOR SAIL SYSTEM

JOINT PLATE FOR SAIL SYSTEM 5°: Art. K23005

JOINT PLATE FOR SAIL SYSTEM 11°: Art. K23011

GROUNDING PLATE

GROUNDING PLATE

GROUNDING PLATE (10 PCS): Art. PMT2300

POLYURETHANE FOAM

POLYURETHANE FOAM 750ML FOR BALLAST ADHESION

ITEM: SCH750

GUAINE

Protection sheath in EPDM thickness 1cm cut 24cm x 15cm (2 pcs). Our sheath (code KGN23115) is a product made from recycled material (rubber) and a binder with high adhesive properties and excellent physical properties and flexibility. Given the structure of the sheath and its composition, it can be used for the installation of Sun Ballast systems, in the designated installation positions and on the surfaces of flat roofs (industrial and civil).

ITEM: Art. KGN23115

TYPE OF SHEATH: EPDM

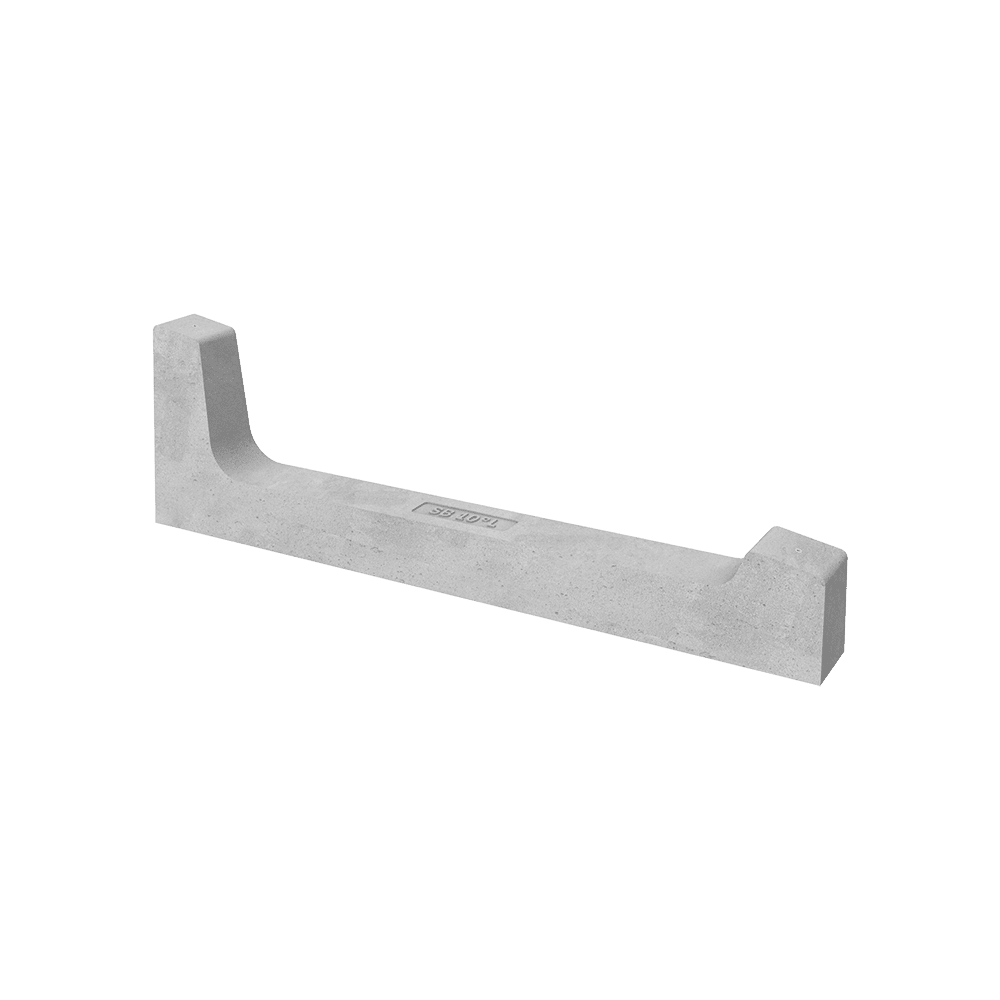

ADDITIONAL INFORMATION: FOR THE BALLASTS 10°.L AND 0°.KP IT IS NECESSARY TO INSERT 4 PIECES UNDER EACH STRUCTURE
