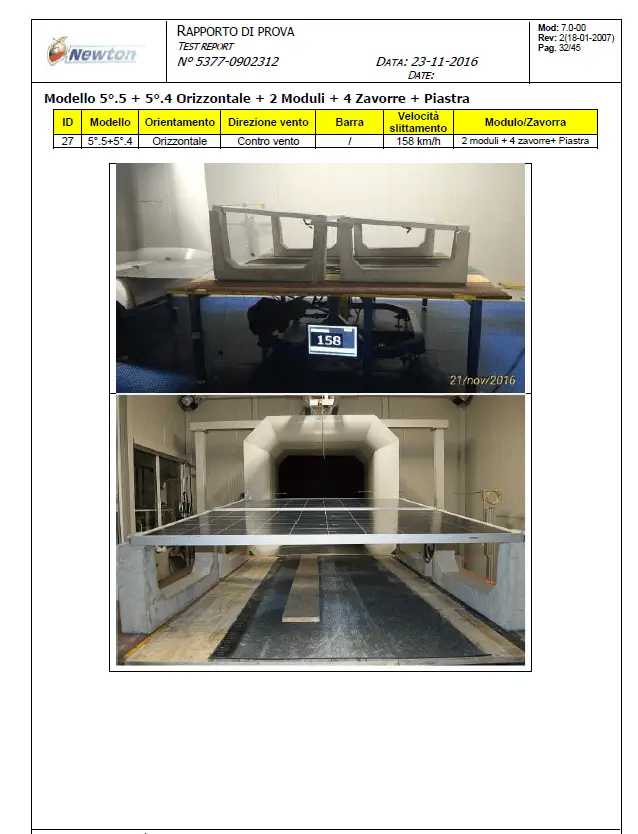

Test galleria del vento

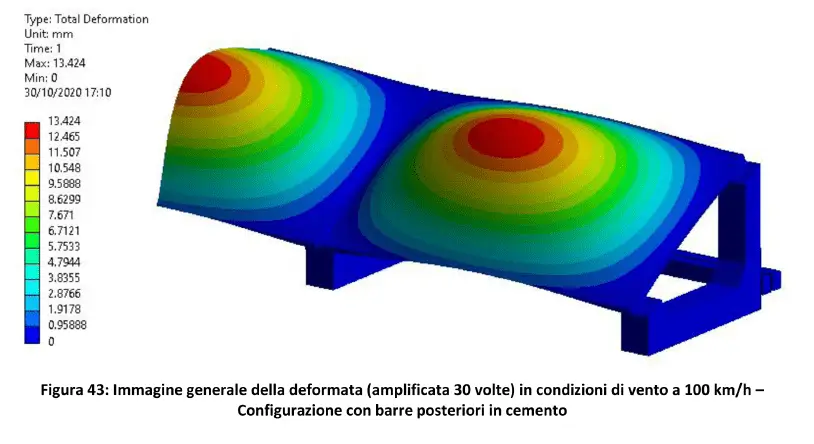

Analisi fluidodinamiche

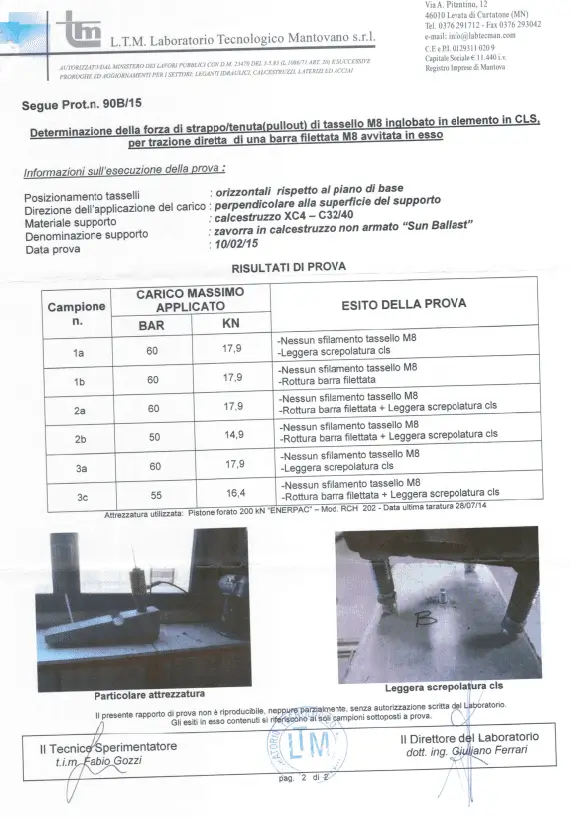

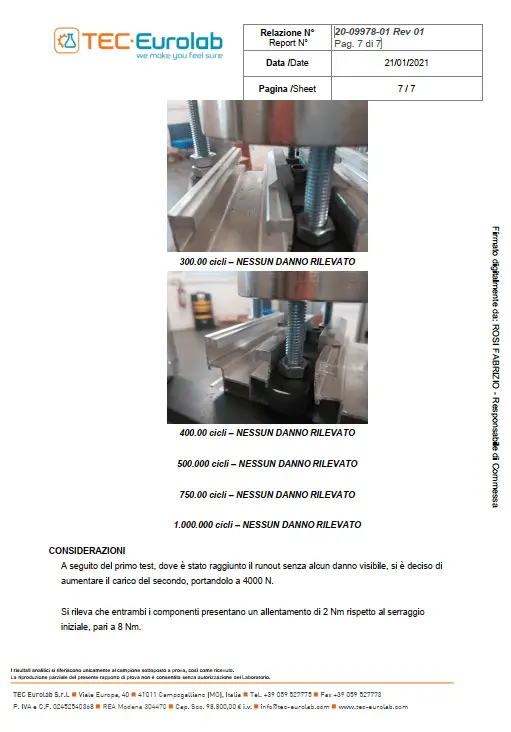

Prova dinamica sul fissaggio
Easy and fast to install, stable and wind resistant, more than 40 models available and a range of inclinations from 0 to 35 degrees to choose from. It is not necessary to drill the cover because the ballasts do not have to be fixed but only to place them on the roof. The result is a cost per kW drastically reduced compared to traditional systems. In this video you will find all the details into these and all the other benefits provided by Sun Ballast®.
Watch the video and discover them all!
Finding new solutions to meet the needs of an ever-changing market is fundamental for us at Sun Ballast®.
More than 300 hours a year dedicated to research and development, that’s why we became market leaders, because we left nothing to chance.
In this video you will get to know all the results obtained and the severe tests carried out to offer our customers innovative solutions able to effectively respond to all types of problems.

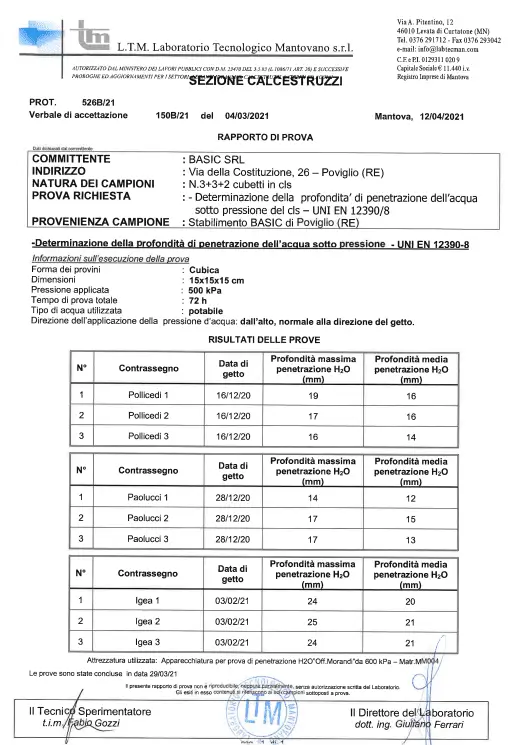

You will also know all the tests and laboratory tests to which we have submitted and we submit to our ballasts to obtain a better product.
We left nothing to chance!
Test galleria del vento
Analisi fluidodinamiche
Prova dinamica sul fissaggio
Patented system
UNI EN ISO 9001:2015
Certificate No. 50 100 13413
International industrial design certificate DM/086946
BASIC SBRL
Registered office:
Contrada Monticello S.N.C
85042 Lagonegro (PZ)
Operational headquarters:
Via Danubio, 8
42124 Reggio Emilia (RE) – Italy
Tel. 0522 960926
Email: info@sunballast.com
Message us on WhatsApp
Administrative Section:
basic@mypec.eu
SDI: W7YVJK9
VAT No. 02557770357
CCIAA/REA: RE 292573
Share Capital €100,000.00
Copyright © 2026 BASIC SBRL. All Rights Reserved.
The new plate dedicated to the PowerClamp bracket has been designed to ensure an even more secure fastening for the terminal panels: resting on the concrete of the ballast, the plate provides the metal teeth of the bracket with a solid and reliable support, offering a practical, robust, and quick solution.
ITEM: 23920/PWC
MATERIAL: Steel
Specifically designed for the EasyWest system, the PowerClamp brackets are made of stainless steel 304 and ensure high safety from both mechanical and electrical perspectives. The special metal teeth provide a strong and durable fastening, and allow bypassing the anodization of the panel frames, acting as an electrical bridge and making grounding operations much simpler and faster. The brackets come in two different sizes: the EP version is to be used on the taller ballast (23010.EP), while the EV version is fixed to the shorter ballast (23010.EV).
ITEM: K23900PWC-EV.40
MATERIAL: Steel
Specifically designed for the EasyWest system, the PowerClamp brackets are made of stainless steel 304 and ensure high safety from both mechanical and electrical perspectives. The special metal teeth provide a strong and durable fastening, allowing for the overcoming of the anodization of the panel frames by acting as an electrical bridge, making grounding operations much simpler and faster. The brackets come in two different sizes: the EP version is to be used on the higher ballasts (23010.EP), while the EV version attaches to the lower ballasts (23010.EV).
ITEM: K23900PWC-EP.40
MATERIAL: Steel
Made of 304 stainless steel, the new PowerClamp bracket has been designed to ensure an even more solid attachment of the PV panels: the metal teeth provide a strong and durable grip – even under intense weather conditions – further contributing to the safety and reliability of the system. The bracket also serves as an electrical bridge between the panels, making grounding operations – if necessary – much simpler and faster.
ITEM: K23900/PWC.50
MATERIAL: Steel
NO-FLEX Connect is a Sun Ballast accessory designed to be inserted on central reinforcement weights to support large panels and prevent central bending. Its “L” shape is designed to be compatible with all inclinations of the Sun Ballast Connect systems from 5° to 30° with panels installed horizontally.
ITEM: K23711
MATERIAL: Steel
THICKNESS: 30/10
WEIGHT: 120g
NO-FLEX Standard is a Sun Ballast accessory designed to be inserted on central reinforcement weights to support large panels and prevent central bending. Its “I” shape is designed to be compatible with all angles of the Standard Sun Ballast systems from 3° to 30° with panels installed horizontally.
ITEM: K23712
MATERIAL: Steel
THICKNESS: 30/10
WEIGHT: 120g
ITEM: K23709
DIMA ALIGNMENT WEIGHTS FOR CONNECT SYSTEM
ITEM: K23400
DIMA ALLINEA ZAVORRE FOR STANDARD SYSTEM
ITEM: 23400
Accessory made of aluminum 6060 T6, a material that has good workability for the production of profiles with even complex sections. Standardized products for photovoltaic systems. Maximum tightening torque 12 -14N/m. The main characteristics are: high break load; high yield load; good elastic resistance.
ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): Art. K23900/U.50
ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): Art. K23900/U.55
BLACK ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): K23900/UN.50
BLACK ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): K23900/UN.55
Accessory made of aluminum 6060 T6, a material that offers good workability for the production of profiles with even complex sections. Standardized products for photovoltaic systems. Maximum tightening torque 12 -14N/m. The main features are: high breaking load; high yield strength; good elastic resistance.
ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): Art. K23920/U.50
ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): Art. K23920/U.55
BLACK ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): K23920/UN.50
BLACK ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): K23920/UN.55
The U-Block additional weights allow you to increase the resistance of photovoltaic systems in just a few minutes. Available in two versions of 15 and 30 Kg, the U-Block does not require any fixing holes and is placed directly on the ballast (or the Cablowind system), modulating the load according to the needs of the system.
ITEM: Art. 23015.CRP
QUANTITY PER PALLET: 36 Pieces
PALLET DIMENSIONS: 107 cm x 93 cm h = 48 cm
TOTAL PALLET WEIGHT: 553 Kg
NOTES: USED FOR BALLASTS FROM 5° AND ABOVE FOR HIGH WIND LOADS
Additional weight (30.5x30x17) 30 Kg fitting onto central ballast
ITEM: Art. 23030.CRP
QUANTITY PER PALLET: 18 Pieces
PALLET DIMENSIONS: 90 cm x 98 cm h = 50 cm
TOTAL PALLET WEIGHT: 540 Kg
NOTES: USED FOR BALLASTS FROM 5° AND ABOVE FOR HIGH WIND LOADS
UNIVERSAL JOINING PLATE FOR EAST – WEST INSTALLATION
ITEM: Art. 23815
UNIVERSAL JOINT PLATE KIT
UNIVERSAL JOINT PLATE KIT: K23804
JOINT PLATE FOR SAIL SYSTEM
JOINT PLATE FOR SAIL SYSTEM 5°: Art. K23005
JOINT PLATE FOR SAIL SYSTEM 11°: Art. K23011
GROUNDING PLATE
GROUNDING PLATE (10 PCS): Art. PMT2300
POLYURETHANE FOAM 750ML FOR BALLAST ADHESION
ITEM: SCH750
Protection sheath in EPDM thickness 1cm cut 24cm x 15cm (2 pcs). Our sheath (code KGN23115) is a product made from recycled material (rubber) and a binder with high adhesive properties and excellent physical properties and flexibility. Given the structure of the sheath and its composition, it can be used for the installation of Sun Ballast systems, in the designated installation positions and on the surfaces of flat roofs (industrial and civil).
ITEM: Art. KGN23115
TYPE OF SHEATH: EPDM
ADDITIONAL INFORMATION: FOR THE BALLASTS 10°.L AND 0°.KP IT IS NECESSARY TO INSERT 4 PIECES UNDER EACH STRUCTURE
