Sistema a Vela – 358 kWp

  1. Home
  2. Referenze
  3. Sistema a Vela – 358 kWp

Ponte de Lima - Portugal

358 kWp

10° °

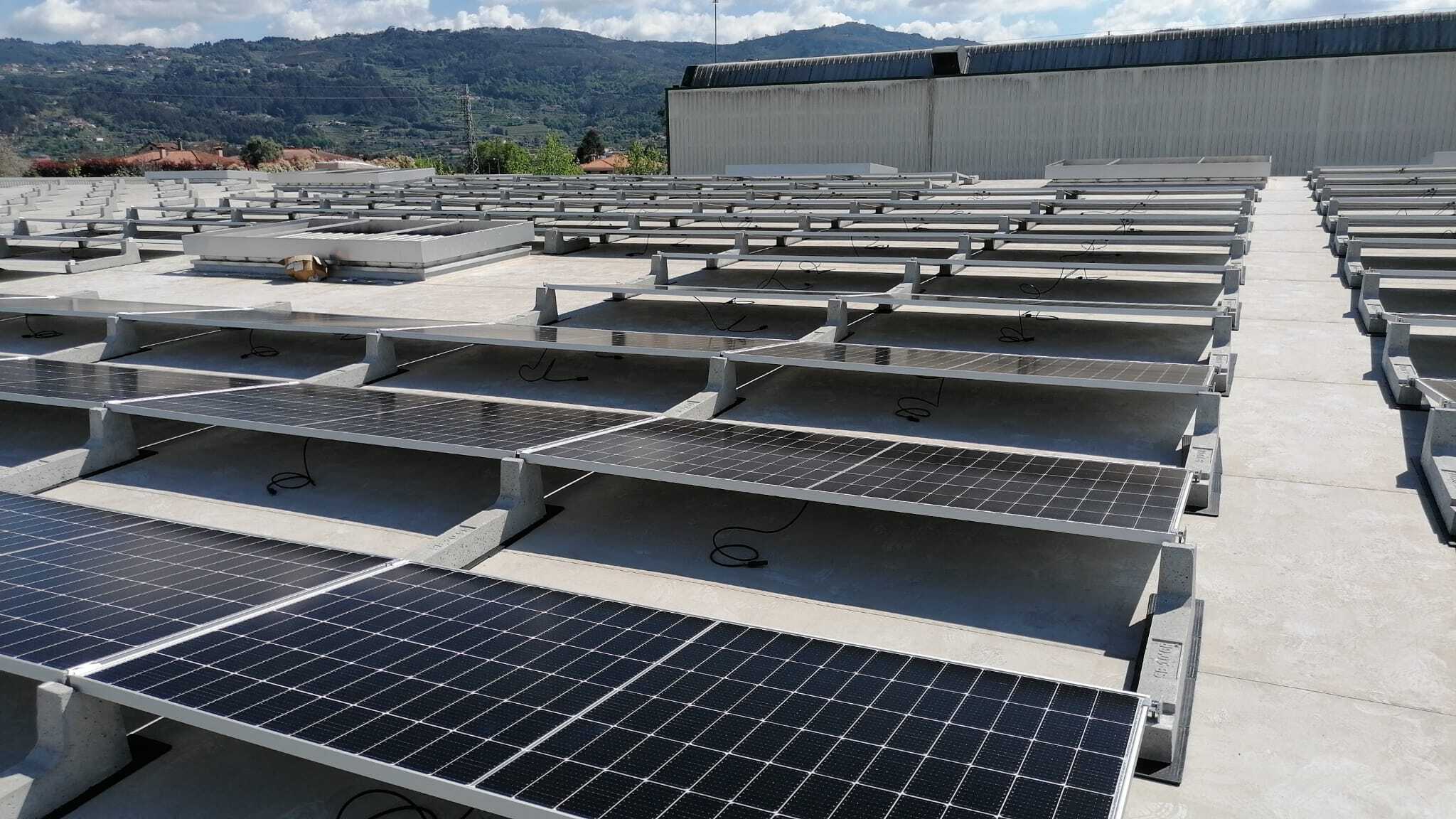

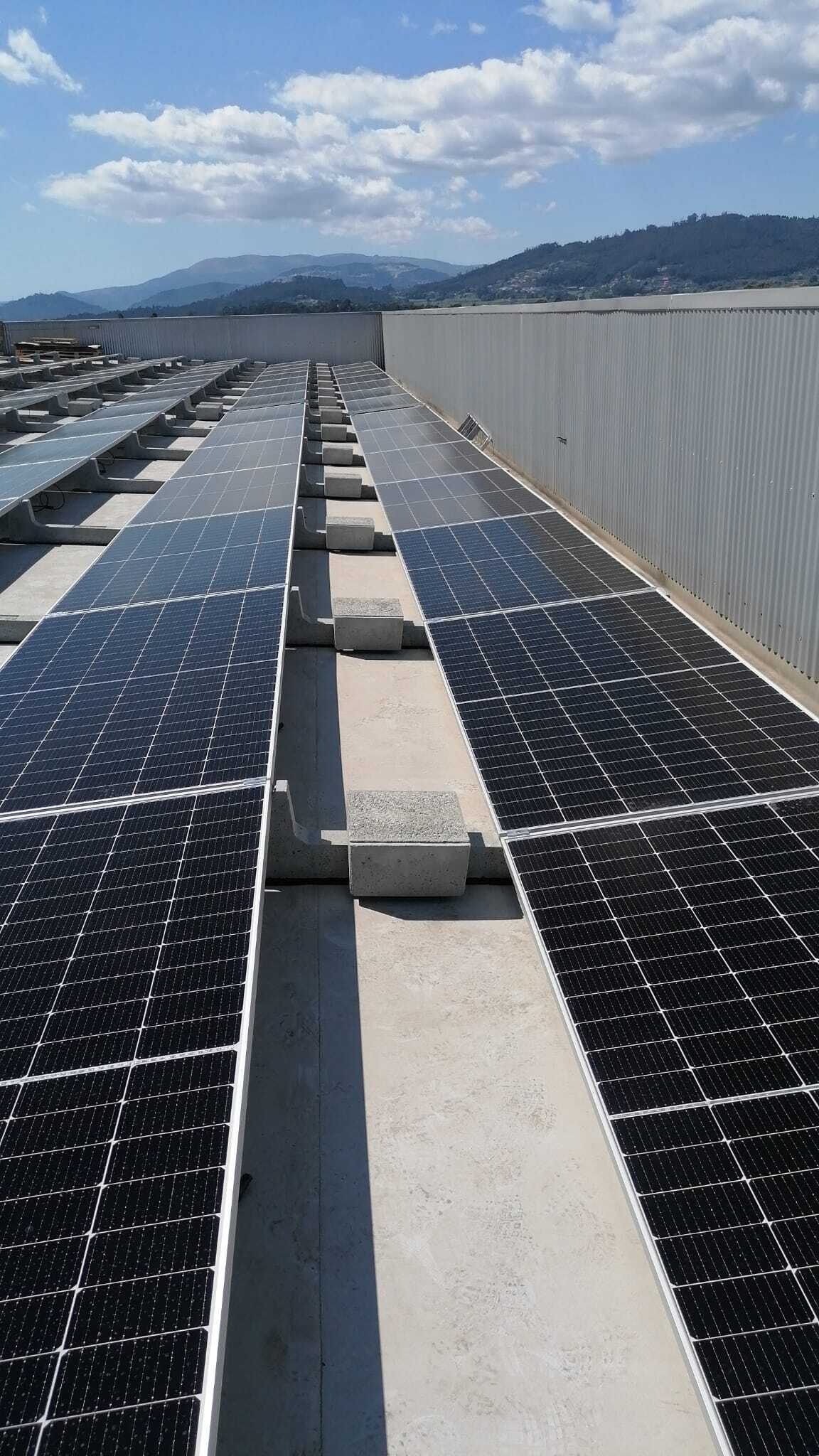

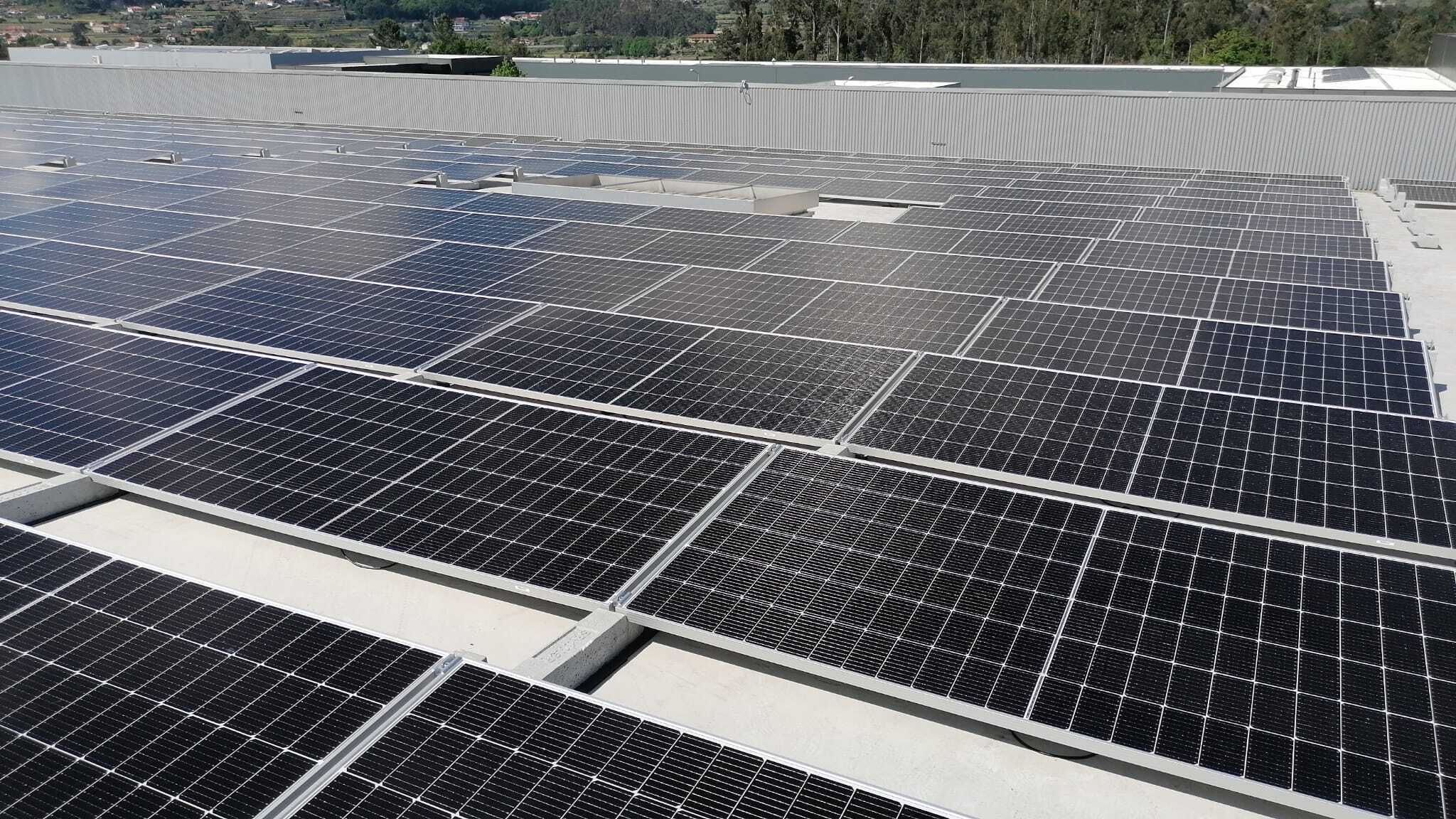

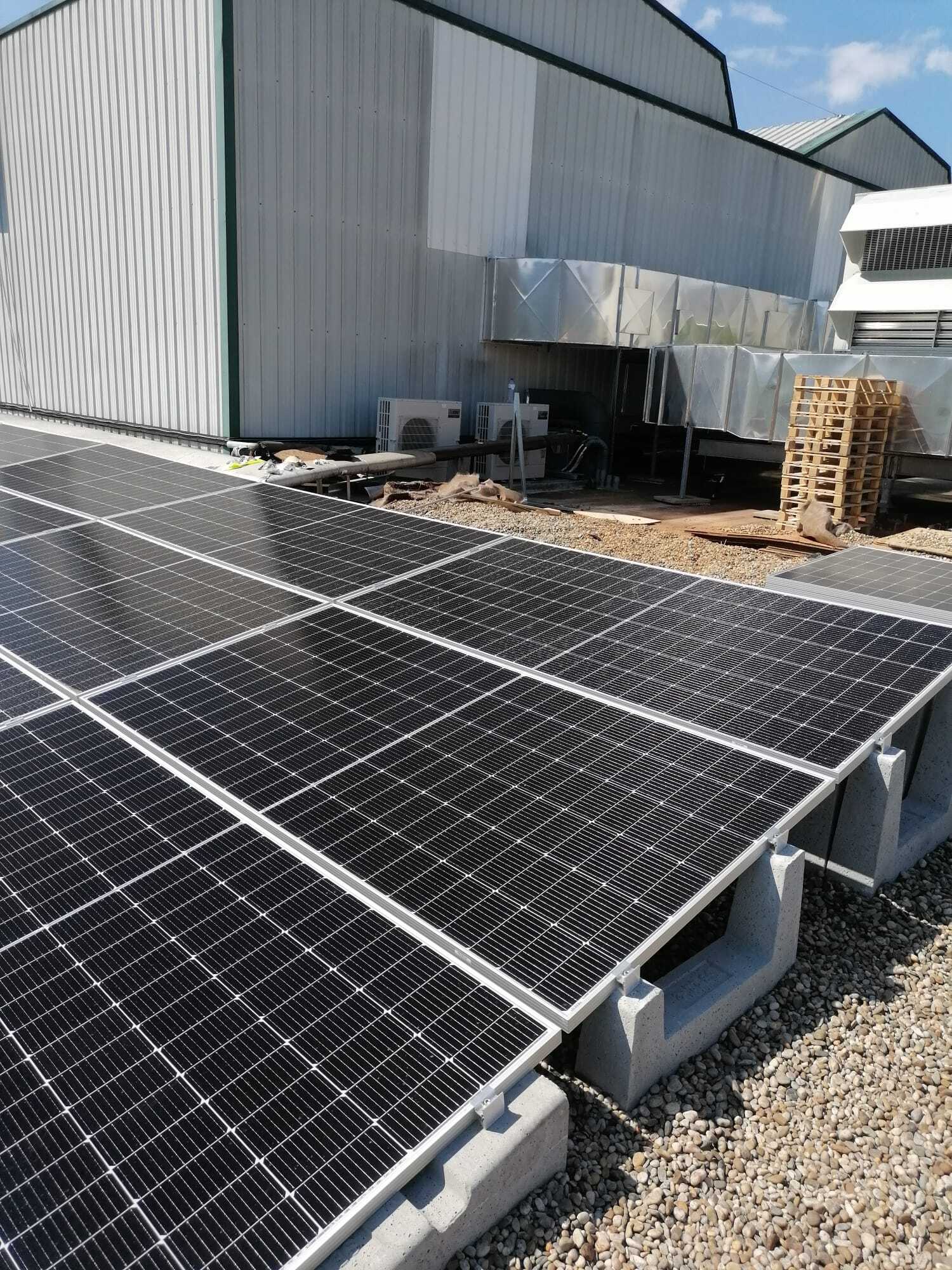

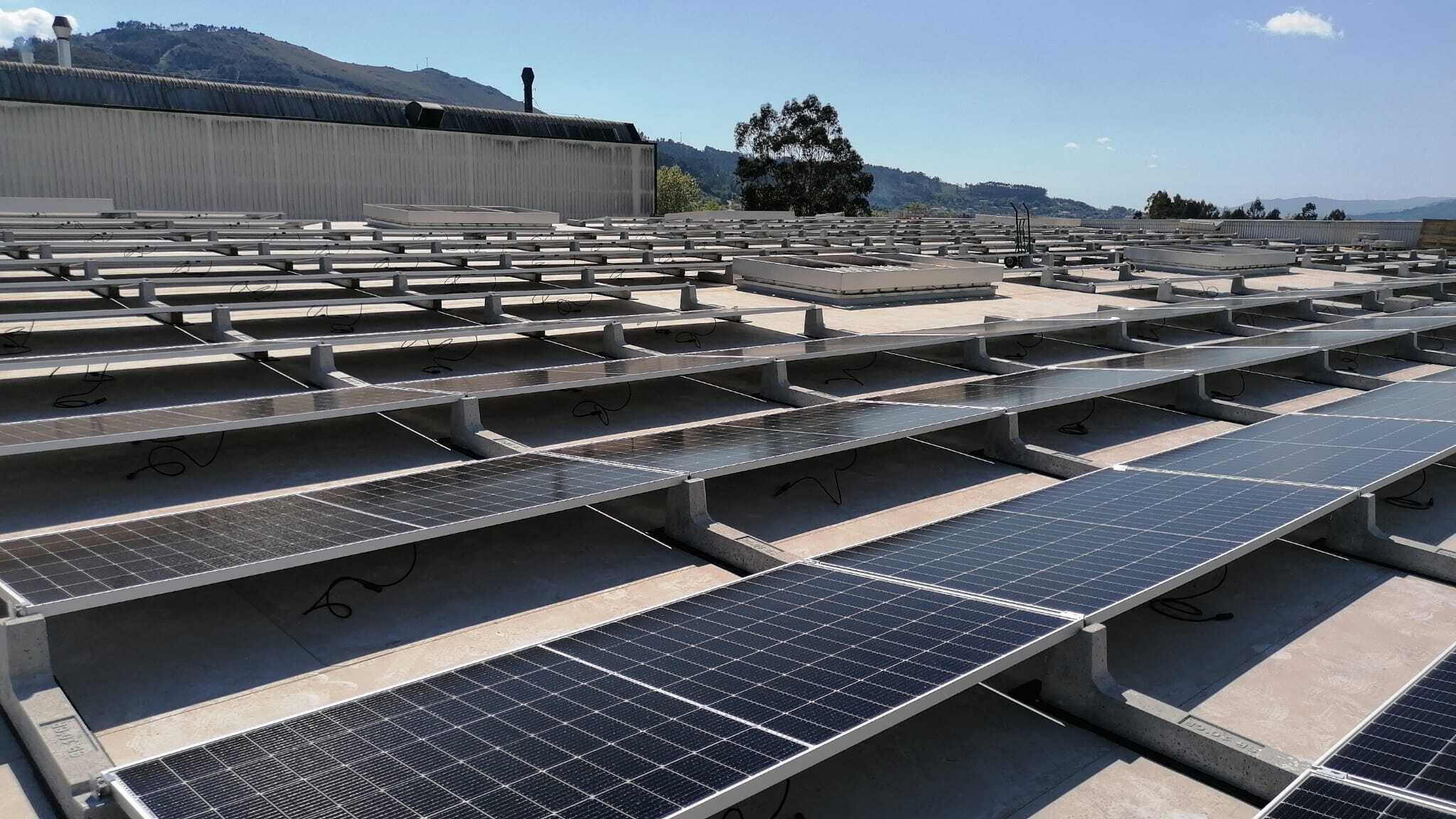

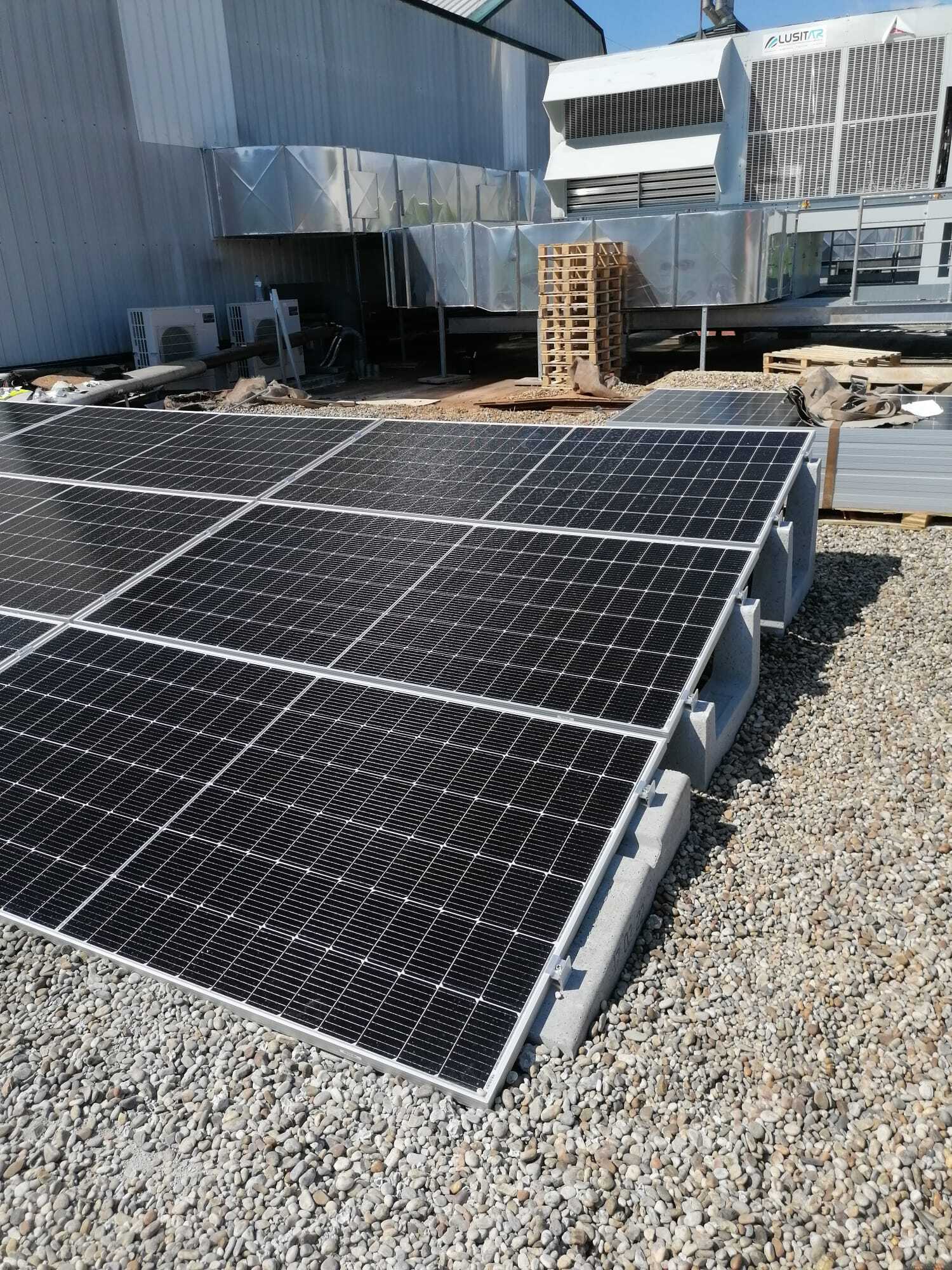

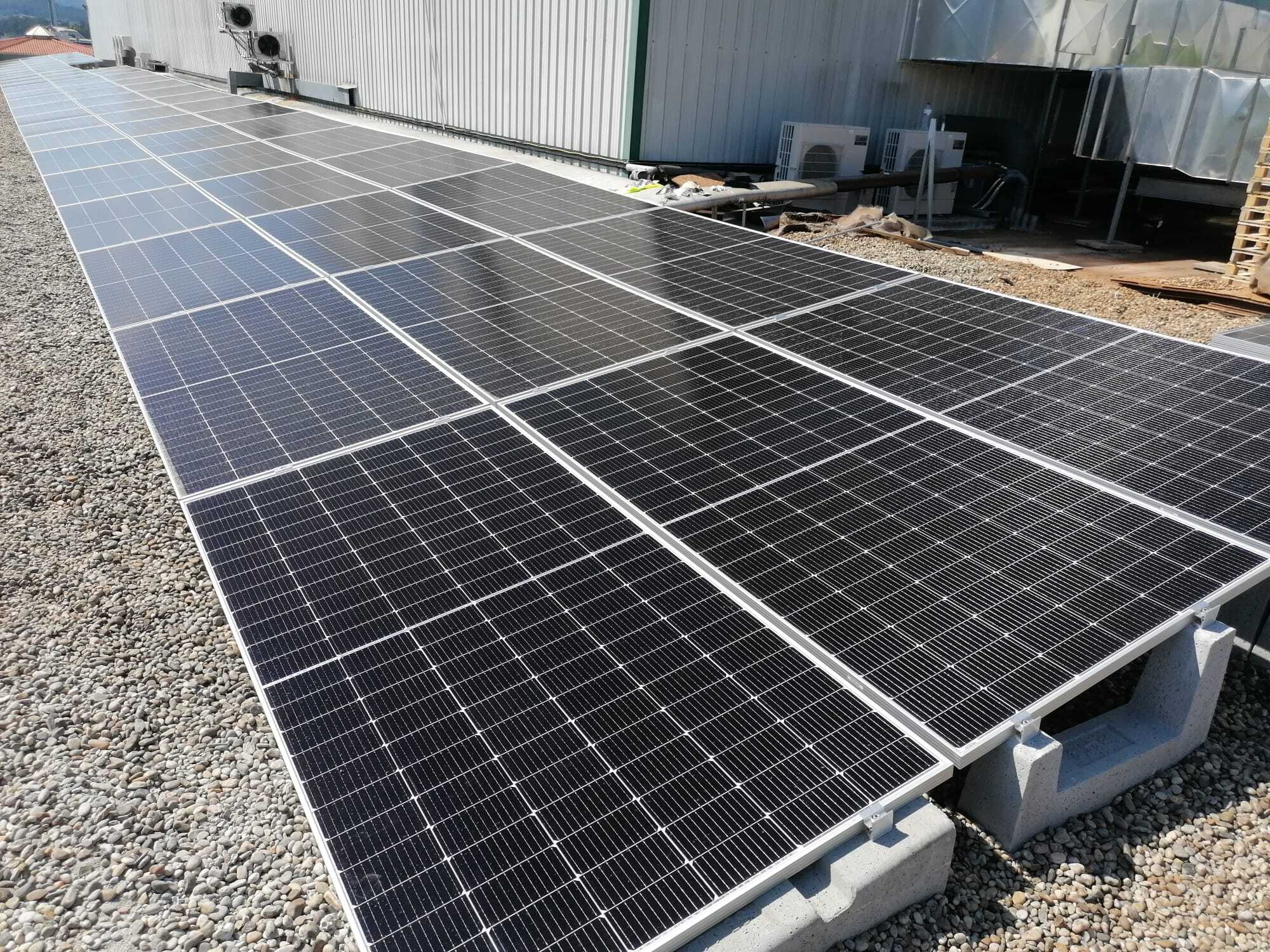

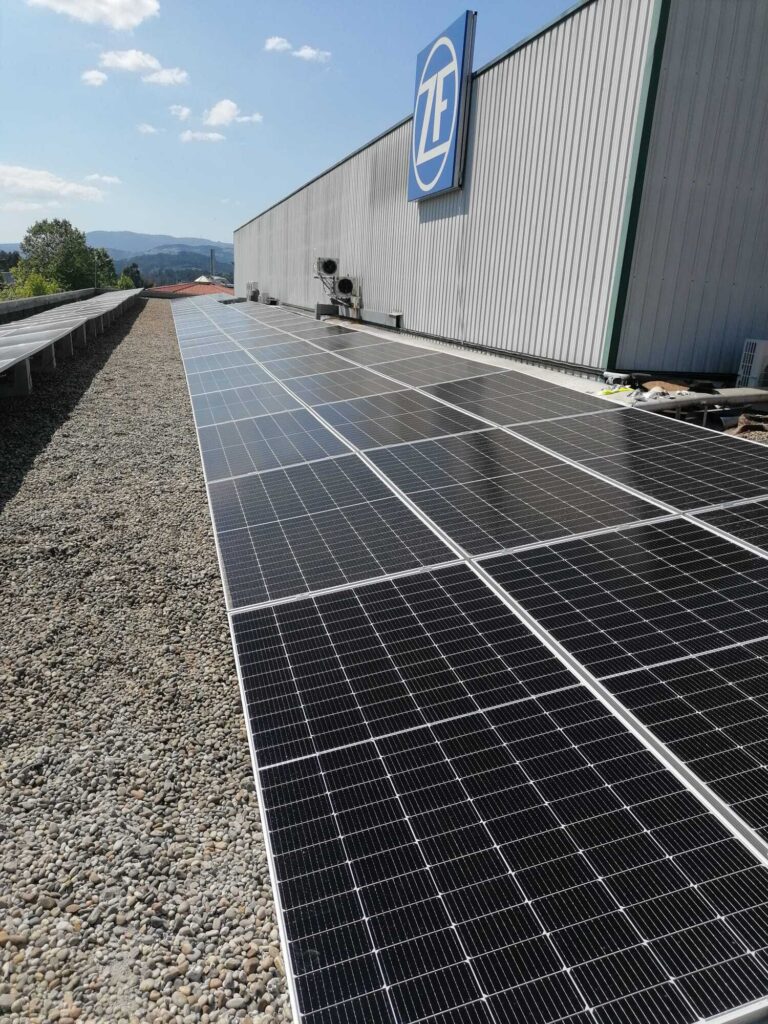

For the realization of this beautiful installation, the Sun Ballast technical office, evaluated the specific characteristics of each roof and the available space, chose to use the combined action of two support systems for Sun Ballast photovoltaic panels: the Sail system and the Connect system. The combination of the two Sun Ballast systems ensured that not a single centimeter of this roof was wasted, and that the maximum production was achieved by utilizing the space in the most intelligent way possible. Despite the different types of roofing on which the ballasts were installed, one with gravel and the other with membrane, no problems were encountered during installation, as the structures do not need to be fixed to the roof while being extremely solid and resistant to wind actions. Thanks to the two Sun Ballast systems, our client Prosolia Energy has implemented a system of 358 kWp of renewable energy.
1652896270974
1652896270985
a065ee51-029d-4c28-9d24-c4722feb5fae
fa7d06f4-2fd6-4a5d-bfb8-e3a419156bf9
65bdd7ec-7e70-4c1d-9125-4fe0f4699331
3126e6cc-dd0e-4dc0-9bdd-cb0e6d2f272d
1652896270924
1652896270943
1652896270953
1652896270964
