Sistema Monofila – 5 kWp

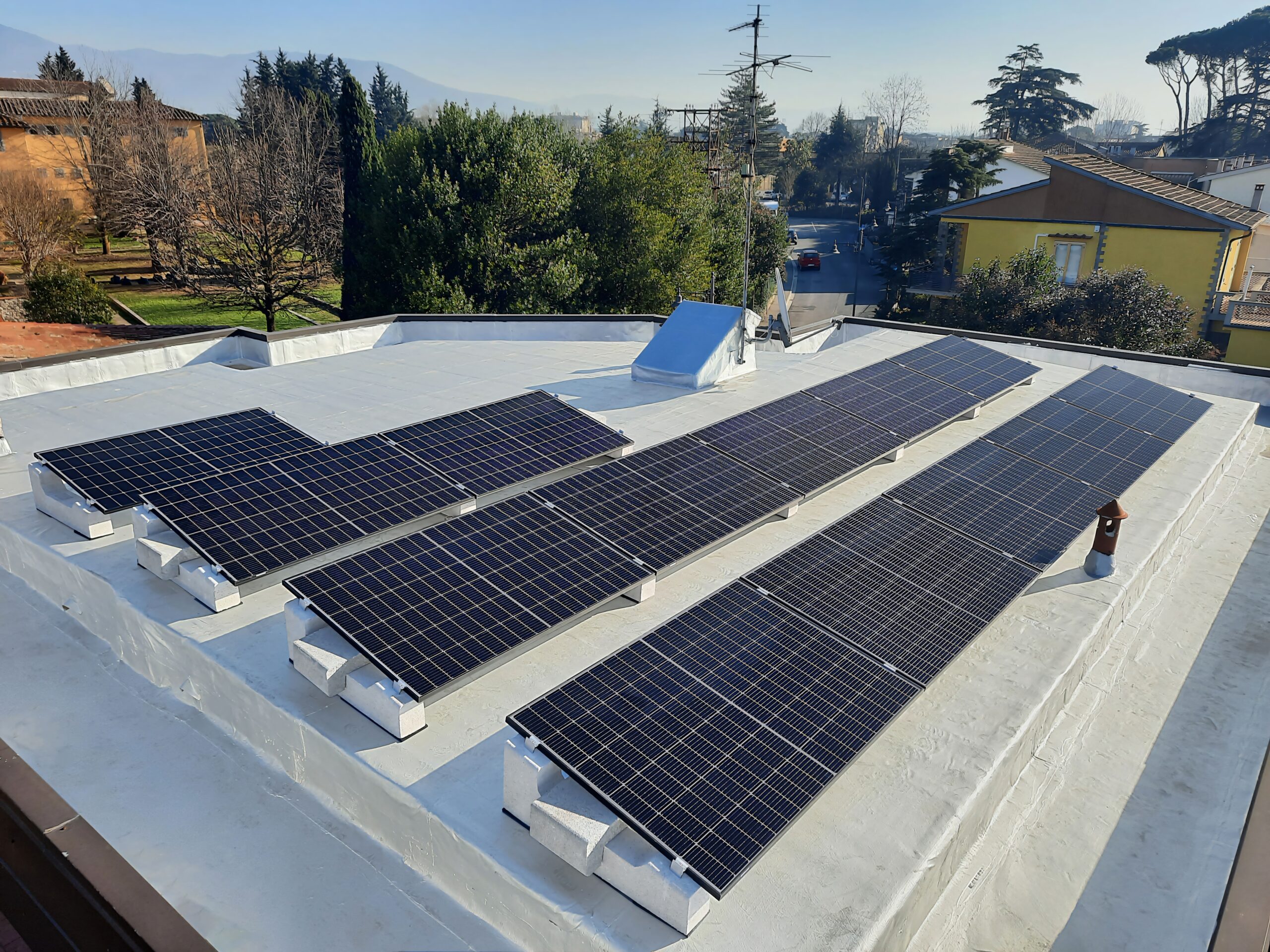

This photovoltaic system with 5 kWp was created by ILES s.r.l. on the flat roof of a residential building in Prato. Thanks to the use of Sun Ballast structures for the photovoltaic modules, the installation was carried out in a easy and quick manner. The placement of the concrete ballast does not require any drilling, and the M8 fixing plugs already present in the ballast further reduce assembly times; it is only necessary to place the structure, position the module, secure the support to the plug, and make the electrical connections.   The Monofila 10° system also offers many other advantages, such as the ability to control the position of the modules much more easily: the length and distance between the rows are freely adjustable according to the specific characteristics of the roof, a very useful feature, especially when there are many obstacles on the roof. The Monofila system is available in a wide range of inclinations – from 0° to 30° – and allows the modules to be fixed on both the long and short sides.   If it is necessary to further increase wind resistance, simply add some U-Block: these additional U-shaped weights are placed very quickly directly on the photovoltaic ballast and are available in 15 and 30 Kg versions.
