Sistema Connect – 484 kWp

  1. Home
  2. Referenze
  3. Sistema Connect – 484 kWp

Vestec - Czech Republic

484 kWp

15° °

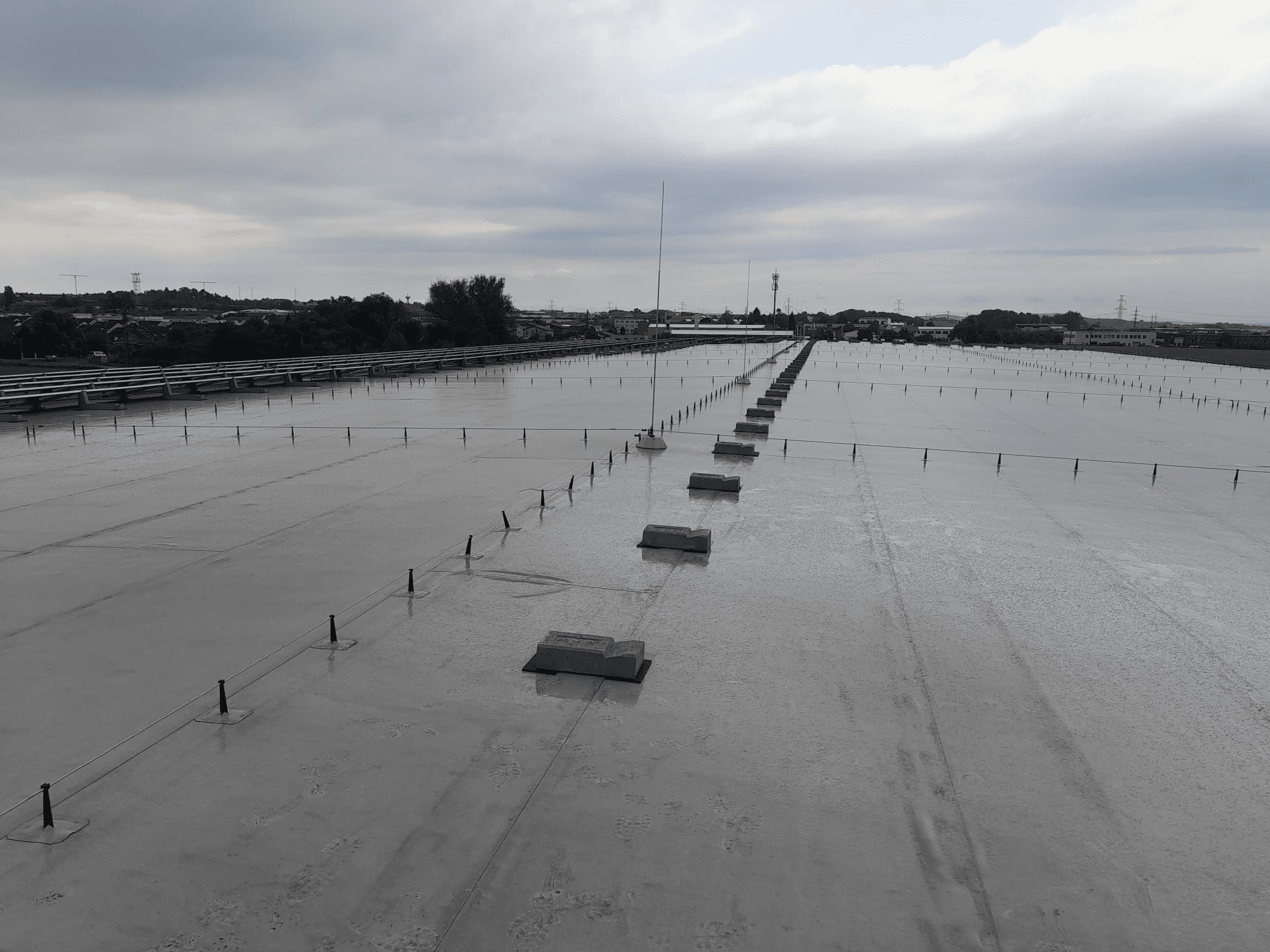

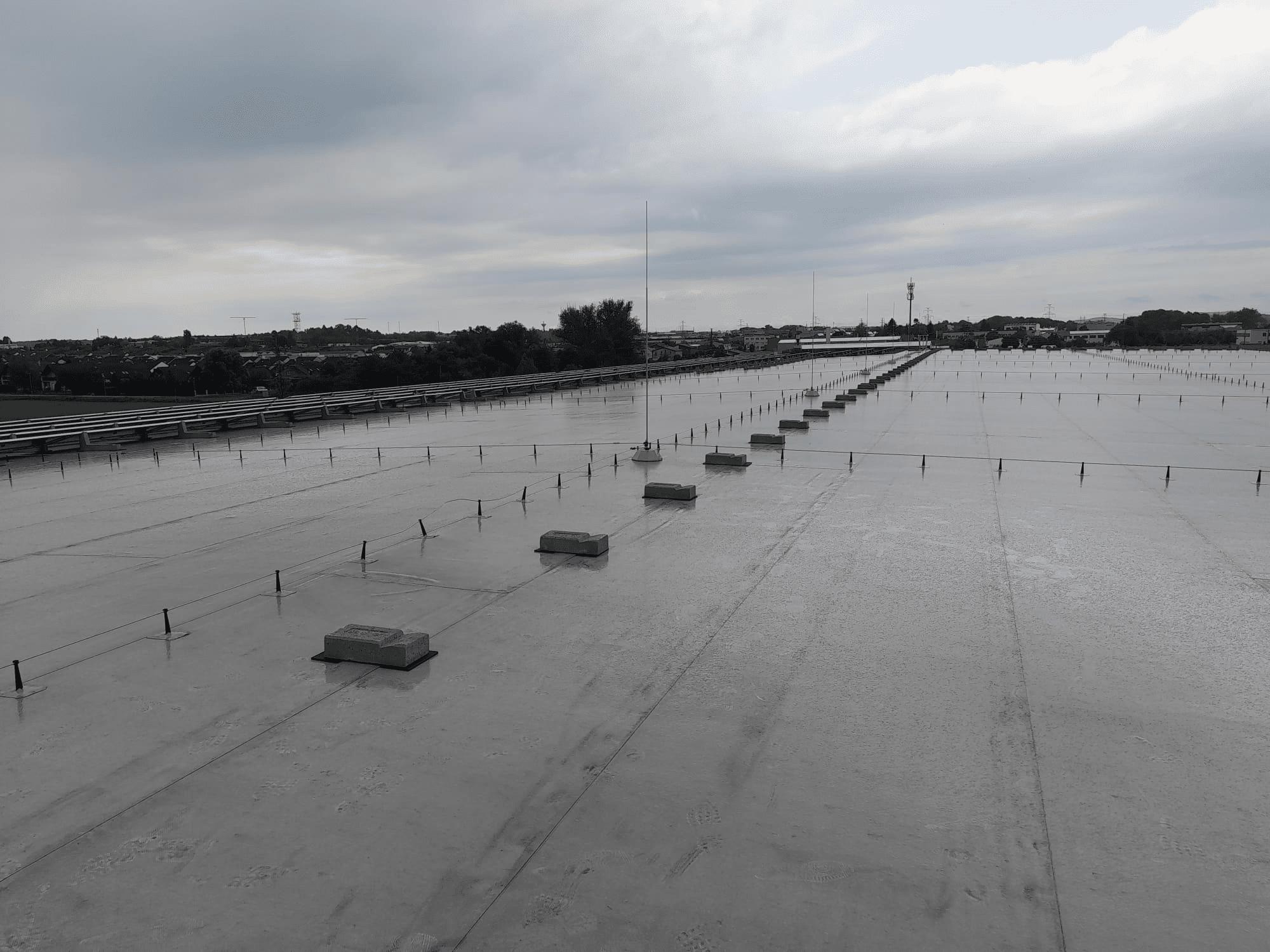

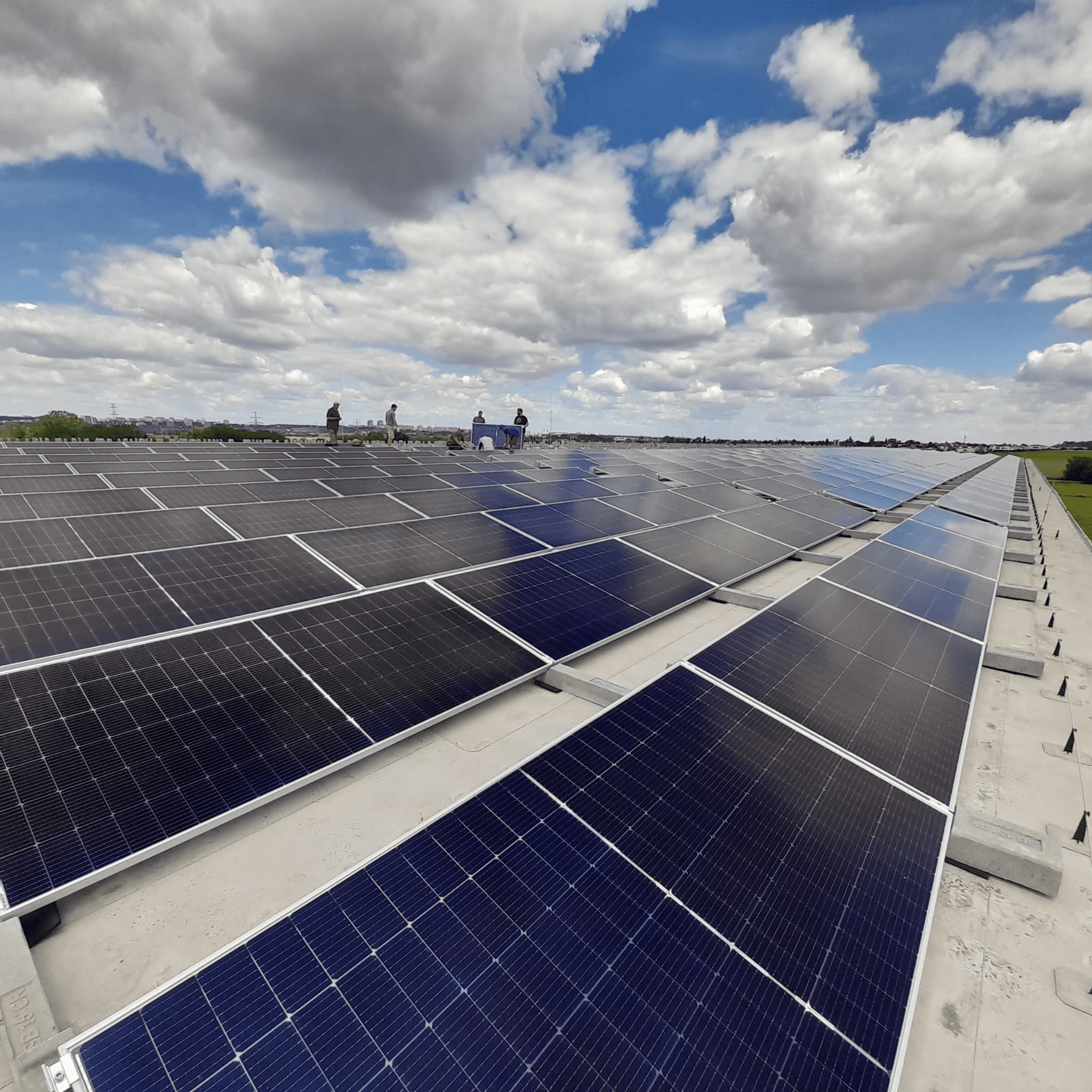

An installation of significant dimensions was carried out in the Czech Republic by our client HB Solar CZ, who managed, thanks to the experience of the technical service and the reliability of the Sun Ballast structures for photovoltaic panels, to create a system of 484 kWp of renewable energy. The system used in this installation is the Connect system, one of the most selected systems by our clients and our technical department, when the goal is to achieve production objectives by creating a large-scale system that can maintain the stability and wind resistance necessary while keeping a low load on the roof. Why is the Connect system the ideal solution for these situations? The Connect system has among its main features the fact that it is a collaborative structure where the panels are interconnected in a sort of grid that manages to evenly distribute the weight on the roof and also maintain a high wind resistance. These characteristics are extremely important, especially when, as in this case, the photovoltaic installation will be positioned on the flat roof of an industrial-type warehouse.
cz5-1
cz3
cz1
cz4
cz2
