Sistema Connect – 4.5 kWp

  1. Home
  2. Referenze
  3. Sistema Connect – 4.5 kWp

Rome - Italy

4.5 kWp

15° °

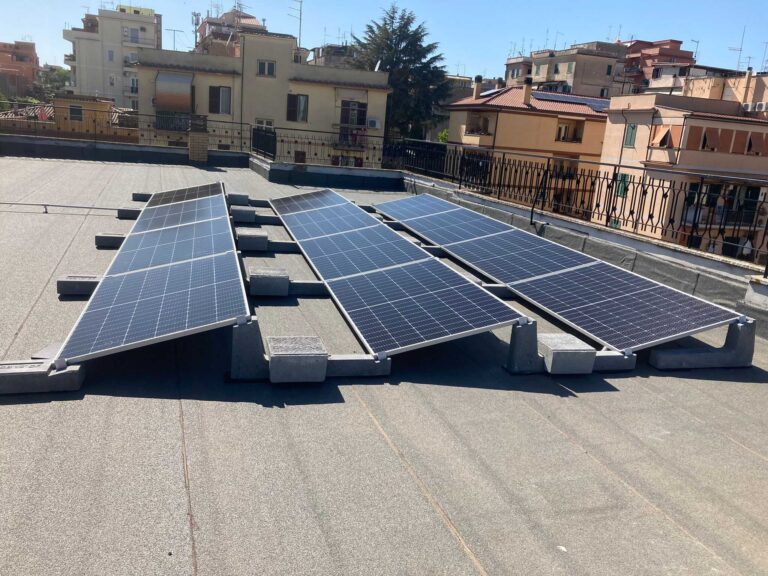

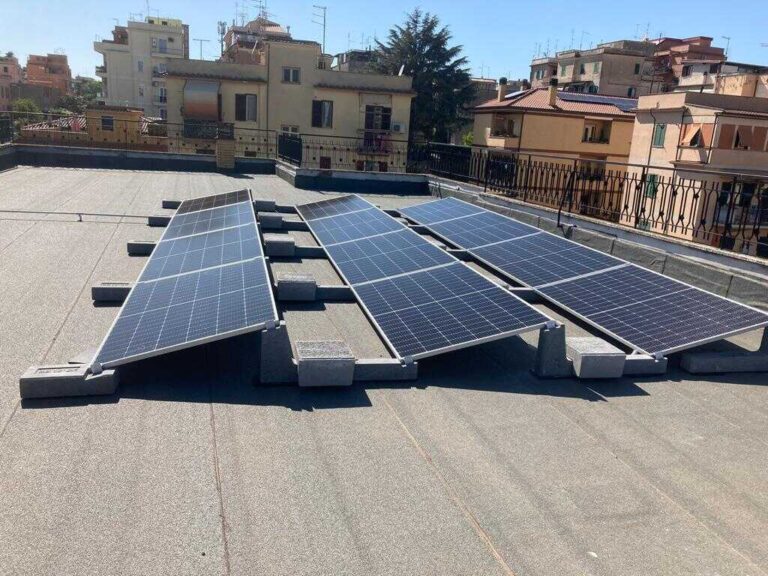

When there are no space issues on the roof and you want to achieve a robust system that does not excessively burden the roof, the Connect system is the best choice. Its unique and innovative lattice structure, where the rows of modules are interconnected, allows for a system that is super resistant to wind actions, as confirmed by rigorous tests conducted in a wind tunnel. Additionally, our client Enersolare E.S.Co. S.r.l., after careful sizing calculations performed by the Sun Ballast technical office, chose to maximize resistance by also incorporating special additional weights. Weights that do not need to be attached to the ballast but are perfect for being inserted into the ballast thanks to their U-shape. Resistance, lightness, but also simplicity and speed of installation are the characteristics that convinced Enersolare E.S.Co. S.r.l., like thousands of other clients before him, and allowed him to realize a 4.5 kWp renewable energy system in just a few hours.
b492fc41-26f2-4422-8cf2-02db32b5019f
4e55fccc-23c4-4d5c-b837-7a5ae3c750bf
784b88b7-8628-4589-9891-de8fa4bab4ba

ASK FOR A

personalised
quote

fill the form

DO YOU NEED

technical support?

CONTACT US NOW

Patented system
UNI EN ISO 9001:2015
Certificate No. 50 100 13413
International industrial design certificate DM/086946

Linkedin-in Facebook-f Instagram Youtube

Contact

BASIC SBRL

Registered office:
Contrada Monticello S.N.C
85042 Lagonegro (PZ)

Operational headquarters:
Via Danubio, 8
42124 Reggio Emilia (RE) – Italy
Tel. 0522 960926
Email: info@sunballast.com
Message us on WhatsApp

Administrative Section:
basic@mypec.eu
SDI: W7YVJK9
VAT No. 02557770357
CCIAA/REA: RE 292573
Share Capital €100,000.00

Useful links

  • Home
  • About us
  • References
  • Products

Newsletter

    • privacy policy
    • cookie policy
    • credits

    Copyright © 2026 BASIC SBRL. All Rights Reserved.

    POWERCLAMP PLATE KIT

    The new plate dedicated to the PowerClamp bracket has been designed to ensure an even more secure fastening for the terminal panels: resting on the concrete of the ballast, the plate provides the metal teeth of the bracket with a solid and reliable support, offering a practical, robust, and quick solution.

    ITEM: 23920/PWC

    MATERIAL: Steel

    KIT GRAFFA EASYWEST EV

    Specifically designed for the EasyWest system, the PowerClamp brackets are made of stainless steel 304 and ensure high safety from both mechanical and electrical perspectives. The special metal teeth provide a strong and durable fastening, and allow bypassing the anodization of the panel frames, acting as an electrical bridge and making grounding operations much simpler and faster. The brackets come in two different sizes: the EP version is to be used on the taller ballast (23010.EP), while the EV version is fixed to the shorter ballast (23010.EV).

    ITEM: K23900PWC-EV.40

    MATERIAL: Steel

    GRAFFA EASYWEST EP KIT

    Specifically designed for the EasyWest system, the PowerClamp brackets are made of stainless steel 304 and ensure high safety from both mechanical and electrical perspectives. The special metal teeth provide a strong and durable fastening, allowing for the overcoming of the anodization of the panel frames by acting as an electrical bridge, making grounding operations much simpler and faster. The brackets come in two different sizes: the EP version is to be used on the higher ballasts (23010.EP), while the EV version attaches to the lower ballasts (23010.EV).

    ITEM: K23900PWC-EP.40

    MATERIAL: Steel

    POWERCLAMP BRACKET KIT

    Made of 304 stainless steel, the new PowerClamp bracket has been designed to ensure an even more solid attachment of the PV panels: the metal teeth provide a strong and durable grip – even under intense weather conditions – further contributing to the safety and reliability of the system. The bracket also serves as an electrical bridge between the panels, making grounding operations – if necessary – much simpler and faster.

    ITEM: K23900/PWC.50

    MATERIAL: Steel

    KIT NO-FLEX CONNECT

    NO-FLEX Connect is a Sun Ballast accessory designed to be inserted on central reinforcement weights to support large panels and prevent central bending. Its “L” shape is designed to be compatible with all inclinations of the Sun Ballast Connect systems from 5° to 30° with panels installed horizontally.

    ITEM: K23711

    MATERIAL: Steel

    THICKNESS: 30/10

    WEIGHT: 120g

    KIT NO-FLEX STANDARD

    NO-FLEX Standard is a Sun Ballast accessory designed to be inserted on central reinforcement weights to support large panels and prevent central bending. Its “I” shape is designed to be compatible with all angles of the Standard Sun Ballast systems from 3° to 30° with panels installed horizontally.

    ITEM: K23712

    MATERIAL: Steel

    THICKNESS: 30/10

    WEIGHT: 120g

    KIT STAFFA Z FOR PROFILES ON BALLAST

    ITEM: K23709

    DIMA ALIGNMENT WEIGHTS FOR CONNECT SYSTEM

    DIMA ALIGNMENT WEIGHTS FOR CONNECT SYSTEM

    ITEM: K23400

    DIMA ALLINEA ZAVORRE FOR STANDARD SYSTEM

    DIMA ALLINEA ZAVORRE FOR STANDARD SYSTEM

    ITEM: 23400

    UNIVERSAL CENTRAL BRACKET KIT

    Accessory made of aluminum 6060 T6, a material that has good workability for the production of profiles with even complex sections. Standardized products for photovoltaic systems. Maximum tightening torque 12 -14N/m. The main characteristics are: high break load; high yield load; good elastic resistance.

    ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): Art. K23900/U.50

    ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): Art. K23900/U.55

    BLACK ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): K23900/UN.50

    BLACK ALUMINUM CENTRAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): K23900/UN.55

    UNIVERSAL TERMINAL BRACKET KIT

    Accessory made of aluminum 6060 T6, a material that offers good workability for the production of profiles with even complex sections. Standardized products for photovoltaic systems. Maximum tightening torque 12 -14N/m. The main features are: high breaking load; high yield strength; good elastic resistance.

    ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): Art. K23920/U.50

    ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): Art. K23920/U.55

    BLACK ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X50 (10 PCS): K23920/UN.50

    BLACK ALUMINUM TERMINAL BRACKET KIT, STAINLESS STEEL SCREW 8X55 (10 PCS): K23920/UN.55

    ADDITIONAL WEIGHT 15 KG (FOR CONNECT AND CABLOWIND SYSTEM)

    The U-Block additional weights allow you to increase the resistance of photovoltaic systems in just a few minutes. Available in two versions of 15 and 30 Kg, the U-Block does not require any fixing holes and is placed directly on the ballast (or the Cablowind system), modulating the load according to the needs of the system.

    ITEM: Art. 23015.CRP

    QUANTITY PER PALLET: 36 Pieces

    PALLET DIMENSIONS: 107 cm x 93 cm h = 48 cm

    TOTAL PALLET WEIGHT: 553 Kg

    NOTES: USED FOR BALLASTS FROM 5° AND ABOVE FOR HIGH WIND LOADS

    ADDITIONAL WEIGHT 30 KG (FOR CONNECT AND CABLOWIND SYSTEM)

    Additional weight (30.5x30x17) 30 Kg fitting onto central ballast

    ITEM: Art. 23030.CRP

    QUANTITY PER PALLET: 18 Pieces

    PALLET DIMENSIONS: 90 cm x 98 cm h = 50 cm

    TOTAL PALLET WEIGHT: 540 Kg

    NOTES: USED FOR BALLASTS FROM 5° AND ABOVE FOR HIGH WIND LOADS

    UNIVERSAL JOINING PLATE FOR EAST – WEST INSTALLATION

    UNIVERSAL JOINING PLATE FOR EAST – WEST INSTALLATION

    ITEM: Art. 23815

    UNIVERSAL JOINT PLATE KIT

    UNIVERSAL JOINT PLATE KIT

    UNIVERSAL JOINT PLATE KIT: K23804

    JOINT PLATE FOR SAIL SYSTEM

    JOINT PLATE FOR SAIL SYSTEM

    JOINT PLATE FOR SAIL SYSTEM 5°: Art. K23005

    JOINT PLATE FOR SAIL SYSTEM 11°: Art. K23011

    GROUNDING PLATE

    GROUNDING PLATE

    GROUNDING PLATE (10 PCS): Art. PMT2300

    POLYURETHANE FOAM

    POLYURETHANE FOAM 750ML FOR BALLAST ADHESION

    ITEM: SCH750

    GUAINE

    Protection sheath in EPDM thickness 1cm cut 24cm x 15cm (2 pcs). Our sheath (code KGN23115) is a product made from recycled material (rubber) and a binder with high adhesive properties and excellent physical properties and flexibility. Given the structure of the sheath and its composition, it can be used for the installation of Sun Ballast systems, in the designated installation positions and on the surfaces of flat roofs (industrial and civil).

    ITEM: Art. KGN23115

    TYPE OF SHEATH: EPDM

    ADDITIONAL INFORMATION: FOR THE BALLASTS 10°.L AND 0°.KP IT IS NECESSARY TO INSERT 4 PIECES UNDER EACH STRUCTURE
