Connect System 10° Vertical

INCLINATIONS

The 10 ° Connect system Vertical is particularly suitable for large photovoltaic systems where there are no space problems and where very important energy power is required from the system. The vertical system is available only for 10 ° inclination which represents one of the most used inclinations in medium-large systems.
The system creates a grid composed of ballasts and photovoltaic modules linked together, making the rows integral with each other. This guarantees high wind resistance as confirmed by meticulous checks with fluid dynamics simulators and structural yielding loads, achieving excellent wind resistance results. All this in the face of reduced kg / m2 weights. Overall, the multi-module ballast system reports a roof load of about 15-20 kg / m2

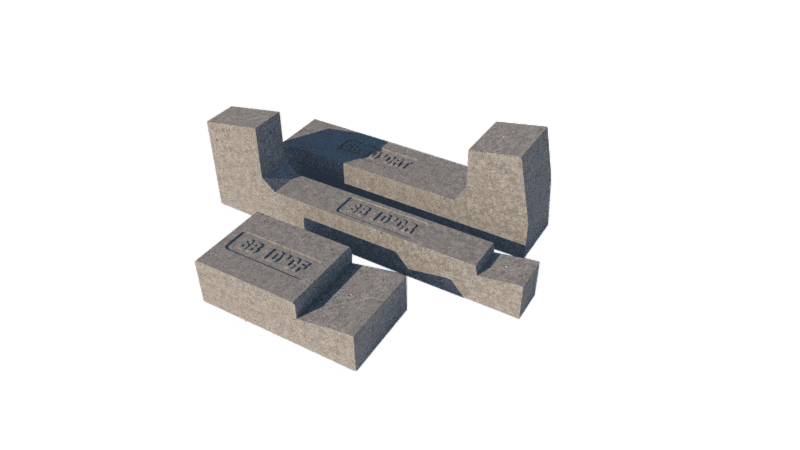

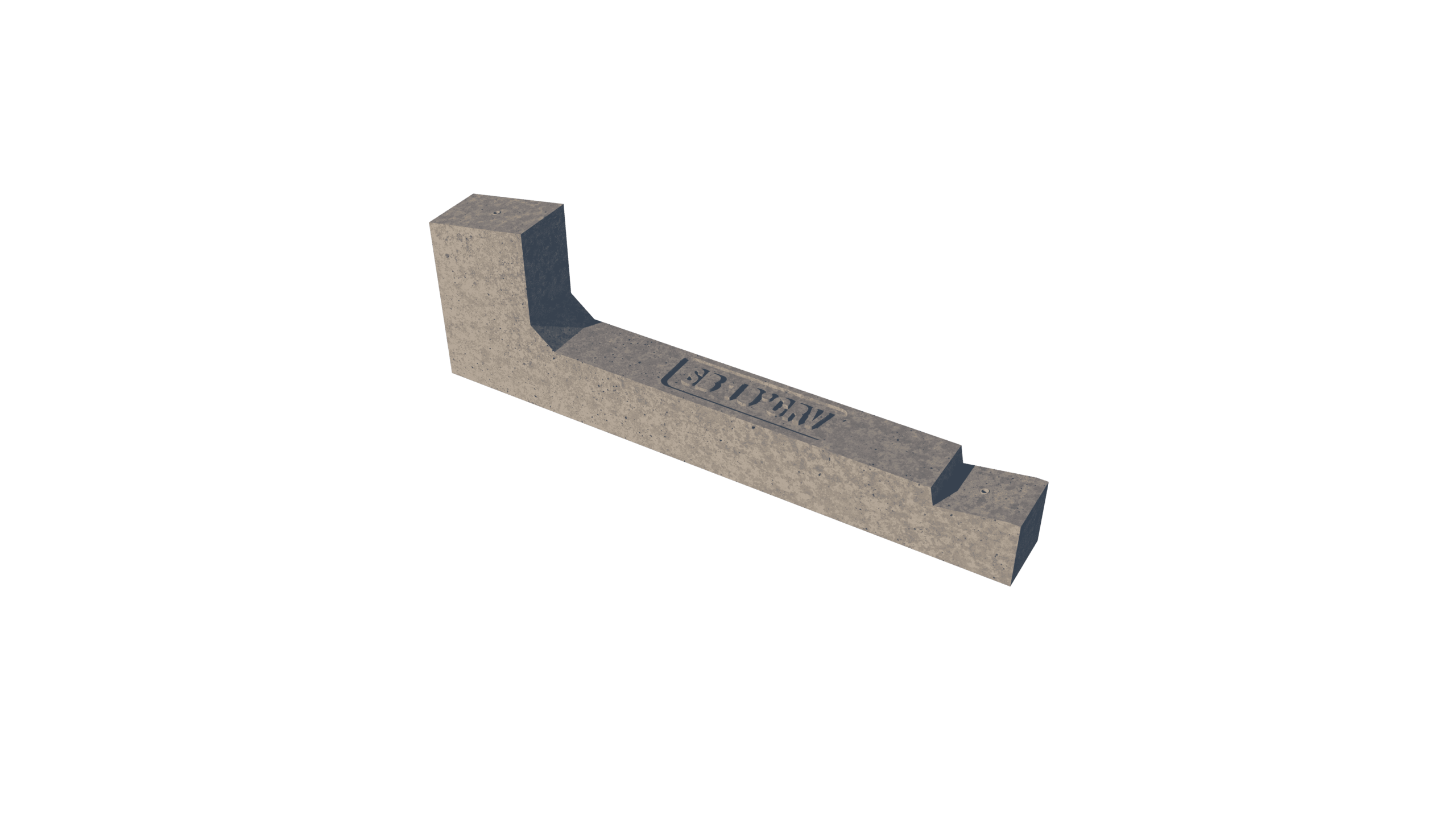

Components

INCLINATION OF THE MODULES
10°

BALLAST WEIGHT
20 Kg

Distance between panels
from 75 cm to 90 cm
Orientation of the pv module
Vertical
Quantity per pallet
24
Palette Dimensions
80 cm x 80cm h=42 cm
Total pallet weight
480 Kg
Size of the PV panel
Long side from 1560 to 1700 – Short side 1000 or similar.

APPLICATION: Any type of flat roof with a maximum slope of 5°; on the ground, on compacted soil with inert material or pavements.

Pitched roofs

Suitable for windy areas

100% recyclable product

available colors

INCLINATION OF THE MODULES
10°

BALLAST WEIGHT
38 Kg

Distance between panels
from 75 cm to 90 cm
Orientation of the pv module
Vertical
Quantity per pallet
16
Palette Dimensions
84 cm x 98cm h = 60 cm
Total pallet weight
608 Kg
Size of the PV panel
Standard Panel 1650×1000 or similar.

APPLICATION: Any type of flat roof with a maximum slope of 5°; on the ground, on compacted soil with inert material or pavements.

Sloped roofs

Suitable for windy areas

100% recyclable product

available colors

INCLINATION OF THE MODULES
10°

BALLAST WEIGHT
33 Kg

Distance between panels
from 75 cm to 90 cm
Orientation of the pv module
Vertical
Quantity per pallet
16
Pallet dimensions
70 cm x 98 cm h = 60 cm
Total pallet weight
528 Kg
Size of the solar panel
Standard Panel 1650×1000 or similar.

APPLICATION: Any type of flat roof with a maximum slope of 5°; on the ground, on compacted soil with inert material or pavements.

Pitched roofs

Suitable for windy areas

100% recyclable product

available colors

ASSEMBLY HAS NEVER BEEN SO EASY!

With Sun Ballast Connect system, the company takes a further step forward in the direction of the corporate mission: to contribute to the reduction of renewable energy costs in order to achieve self-sufficiency.
In fact, this system simplifies and facilitates the installation of the photovoltaic system on flat roofs. The ballasts are equipped with a tooth that hold the module, preventing its release and improving its tightness. The distance between the rows is given by the module size, therefore, by squaring the first row, the rest comes by itself, easier and faster than ever.

The results for those who choose to use the new Sun Ballast-Connect system are concrete and tangible. From a technical point of view, there is an improvement in wind resistance with a lower roof load (kg / m2).
In economic terms, there is a real reduction in purchase, transport and installation times.

Yes, our system can be installed on membranes, paved surfaces, gravel, green roofs and on the ground.

Yes, if necessary, our ballast can be drilled in the central areas to insert expansion anchors with a diameter of 9 mm.

Yes, our technicians will recommend the best solution after reviewing the panel’s technical data sheet and installation instructions.

Yes, they can be installed using mounting rails.

Once we receive the completed order—that is, the signed order, the delivery address and payment—we arrange shipment with the following estimated delivery times: 2–3 business days for Northern Italy, 3–4 business days for Central Italy, 4–5 business days for Southern Italy and the islands, and 5–6 business days for other countries.

Yes, certainly. We can arrange a vehicle equipped with a hydraulic tail lift to unload up to 15–20 pallets at ground level.

It can be installed on a roof with a slope variation ranging from +5° to -5°.

Yes, the system can be prepared for grounding using the plates supplied upon request, or by creating an electrical connection between the panels in accordance with standard installation procedures.

Yes, it is possible, with a minimum order quantity of one pallet.

Yes, our ballasts contain one or two steel reinforcement bars to withstand handling. This means that if a ballast is damaged during transport—for example, if it has hairline cracks around its circumference—it can still be used.

No, it is made of galvanised steel, as this material allows the thread to be re-tapped during installation using an M8 tap.

Apply a lubricant, such as WD-40, or grease to the insert.

Our insert has an effective thread depth of approximately 3 cm.
